Configuring the HTTP Gateway

Authenticating Access to the HTTP Gateway
- Passwords
- Obfuscating the Password
  - On Linux
  - On Windows

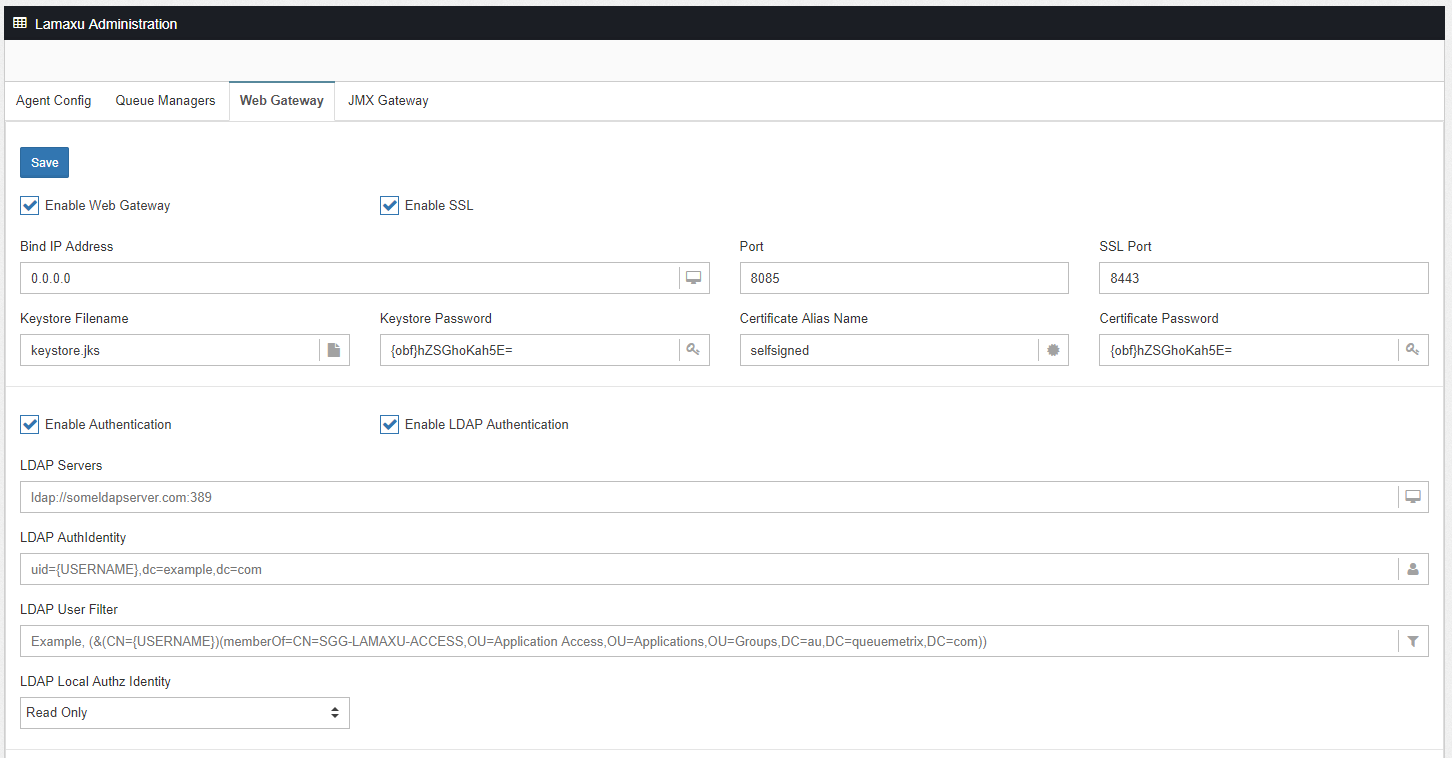

First navigate to the Lamaxu Configuration page, http://localhost:8085/admin/dashboard/#/mq/admin
The default username/password is admin/password

Authenticating Access to the HTTP Gateway

The simplest way to authenticate access to the HTTP gateway is to use a Local User account.

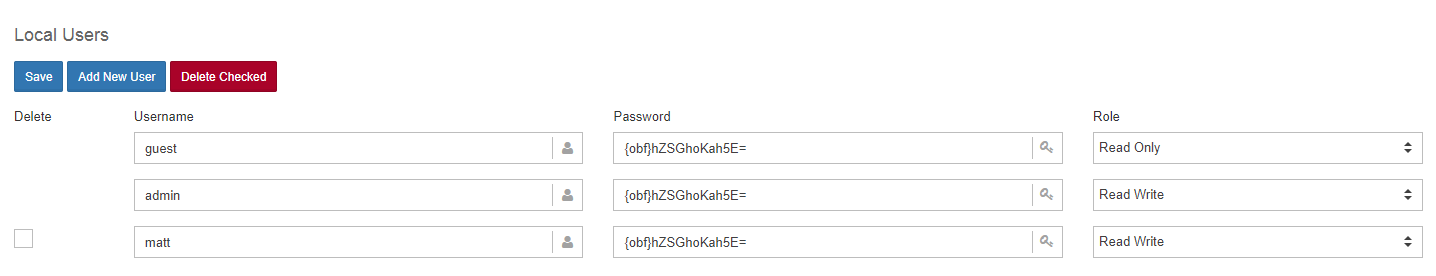

Click the 'Add New User' button to add a new user.

At present Lamaxu does not provide write access to change MQ object via HTTP.

Setting the 'Role' to either 'reader' or 'admin' will result in the same level of access.

Passwords

Passwords can be entered in clear text or obfuscated to prevent them from being visible.

A prefix of {obf} signifies the password has been obfuscated.

Obfuscating the Password

Use the utility located in the bin directory to obfuscate the password.

On Linux

/opt/queuemetrix/lamaxu.{version}/bin/obfuscate.sh password
Obfuscated password is: {obf}hZSGhoKah5E=

On Windows

The command below will obfuscate the password 'password'.

C:\Program Files (x86)\QueueMetrix\LAMAXU\bin>obfuscate.bat password
Obfuscated password is: {obf}hZSGhoKah5E=

REST Web Service API

The HTTP Gateway can be accessed using your favourite http client. Some recommendations are:

curl
wget
Postman (Google Chrome Extension)

For the request URL format, the use of headers, response codes, etc. follow the conventions recommended for a RESTful API. This is described in detail below:

Required Header:

Accept application/json (Return requested data in JSON format)

or

Accept application/xml (Return requested data in XML format)

Please note, a .* wildcard value can only be used as part of the objectName and fieldValue segments. A message "Warning": "Search returned no results." will be returned if used elsewhere.

Table of Web Service REST URIs

Object Type	Category	Example REST URI	Operating System	Notes
QMGR	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/QMGR	All
QUEUE	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/QUEUE	All
CHANNEL	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/CHANNEL	All
SUBSCRIPTION	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/SUBSCRIPTION	All
TOPIC	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/TOPIC	All
PROCESS	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/PROCESS	All
SERVICE	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/SERVICE	All
NAMELIST	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/NAMELIST	All
STORAGE_CLASS	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/STORAGE_CLASS	ZOS Only
SYSTEM	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/SYSTEM	ZOS Only
LOG	OBJECT_CONFIG	http://host:8085/objects/{QMGR}/LOG	ZOS Only
QUEUE_STATUS	STATUS	http://host:8085/objects/{QMGR}/QUEUE_STATUS	All
QMGR_STATUS	STATUS	http://host:8085/objects/{QMGR}/QMGR_STATUS	All
CHANNEL_STATUS	STATUS	http://host:8085/objects/{QMGR}/CHANNEL_STATUS	All
SERVICE_STATUS	STATUS	http://host:8085/objects/{QMGR}/SERVICE_STATUS	All
SUBSCRIPTION_STATUS	STATUS	http://host:8085/objects/{QMGR}/SUBSCRIPTION_STATUS	All
LISTENER_STATUS	STATUS	http://host:8085/objects/{QMGR}/LISTENER_STATUS	All
PUBSUB_STATUS	STATUS	http://host:8085/objects/{QMGR}/PUBSUB_STATUS	All
PAGESET_USAGE	STATUS	http://host:8085/objects/{QMGR}/PAGESET_USAGE	ZOS Only
CHANNEL_INITIATOR	STATUS	http://host:8085/objects/{QMGR}/CHANNEL_INITIATOR	ZOS Only
CHANNEL_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/CHANNEL_EVENT	All
PUBSUB_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/PUBSUB_EVENT	All
PERFM_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/PERFM_EVENT	All
QMGR_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/QMGR_EVENT	All
COMMAND_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/COMMAND_EVENT	All
LOGGER_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/LOGGER_EVENT	All
CONFIG_EVENT	EVENT_MESSAGE	http://host:8085/statistics/{QMGR}/CONFIG_EVENT	All
Q_STATISTICS	STATS_MESSAGE	http://host:8085/statistics/{QMGR}/Q_STATISTICS	All (Except ZOS)
STATISTICS	STATS_MESSAGE	http://host:8085/statistics/{QMGR}/STATISTICS	All (Except ZOS)	This is the MQI Statistics
RESETQSTATS	STATS_MESSAGE	http://host:8085/statistics/{QMGR}/RESETQSTATS	ZOS Only
ACCOUNTING	STATS_MESSAGE	http://host:8085/statistics/{QMGR}/ACCOUNTING	All (Except ZOS)

Structuring a Request

Structure of the URI

objects/queueManagerName/objectType/objectName/fields

URI Segment	Description	Wildcards Supported	Wildcard Example
queueManagerName	Name of the queue manager	YES	.* can be used to select all or part of the queue manager name
objectType	See DataTypes and Categories	NO
objectName	Name of the MQ object. Example Queue Name	YES	.* can be used to select all or part of the object name
fields	Fields to select separated by a \| character	YES	.* can be used to select all fields \| can be used as an OR statement to select multiple fields

Example

The following URI would show the fields CURDEPTH, IPPROCS and OPPROCS for all queues beginning with TEST on all queue managers.

http://localhost:8085/objects/.*/QUEUE_STATUS/TEST.*/CURDEPTH|IPPROCS|IPPROCS

{
	"queryTime": 0,
	"objects": [
		{
			"messageBrokerName": "TEST",
			"objectName": "TEST.LQ1",
			"objectType": "QUEUE_STATUS",
			"entryTime": "25/09/2018 12:58:47 PM",
			"fields": {
				"OPPROCS": "0",
				"IPPROCS": "0",
				"CURDEPTH": "0"
			}
		},
		{
			"messageBrokerName": "TEST",
			"objectName": "TEST.RESPONSE.Q",
			"objectType": "QUEUE_STATUS",
			"entryTime": "25/09/2018 12:58:47 PM",
			"fields": {
				"OPPROCS": "0",
				"IPPROCS": "0",
				"CURDEPTH": "0"
			}
		},
		{
			"messageBrokerName": "TEST",
			"objectName": "TEST_TOPIC.Q",
			"objectType": "QUEUE_STATUS",
			"entryTime": "25/09/2018 12:58:47 PM",
			"fields": {
				"OPPROCS": "0",
				"IPPROCS": "0",
				"CURDEPTH": "0"
			}
		},
		{
			"messageBrokerName": "TEST",
			"objectName": "TEST.REQUEST.Q",
			"objectType": "QUEUE_STATUS",
			"entryTime": "25/09/2018 12:58:47 PM",
			"fields": {
				"OPPROCS": "0",
				"IPPROCS": "0",
				"CURDEPTH": "0"
			}
		}
	]
}

Request headers

Each request must have an “Accept” header, where the value may be either application/json or application/xml. This tells the Lamaxu process whether you want JSON or XML formatted output.

If your Lamaxu process is configured with local and, or LDAP authentication, you will need to supply an “Authorization” header. A valid value may look like “Basic YWRtaW46YWRwaW4=”

Filter Examples

The URL below filters statistics for QUEUE1 based on the date.

http://hostname.com:8085/statistics/TEST/STATISTICS/QUEUE1/date/2017-09-29

The URLs below filter statistics for all queues matching the .* wildcard for the date or queue name.

http://hostname.com:8085/statistics/TEST/STATISTICS/.*/date/2017-09-29
http://hostname.com:8085/statistics/TEST/STATISTICS/QU.*1/date/2017-09-29
http://hostname.com:8085/statistics/TEST/STATISTICS/QU.*1/date/2017-09.*

Where:

{QMGR} - the name of the queue manager configured
objectype - one of the following, must be in UPPERCASE. Refer to the table below.
objectname - is the name of the queue manager object, i.e. a queue name.

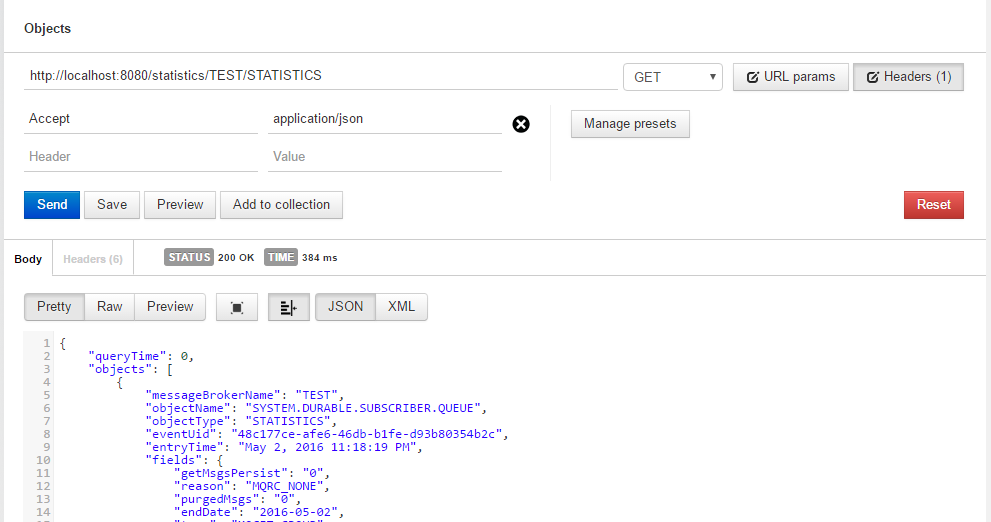

Postman Example showing Accept header

Mainframe ZOS (Only)

RESETQSTATS

On ZOS hosted queue managers, statistics are gathered using a RESETQSTATS command as MQ statistics events are not supported on ZOS.

ObjectType	Category	Log File	URL	Operating System
RESETQSTATS	STATS_MESSAGE	statsData.log	http://host:8085/statistics/{QMGR}/RESETQSTATS	ZOS Only

Sample JSON Data

{
   "queryTime": 0,
   "objects": [
   {
       "messageBrokerName": "DEMO",
       "objectName": "QUEUE1",
       "objectType": "RESETQSTATS",
       "className": "java.lang.Integer",
       "eventUid": "9fac0871-7e1d-4a4e-b195-30026c878753",
       "entryTime": "29/04/2016 2:27:53 PM",
       "fields": {
           "date": "2016-04-29",
           "queueTimeAverage": "12265",
           "QSGDISP": "QMGR",
           "putMsgs": "23",
           "getMsgs": "23",
           "epoch": "1461904073",
           "QUEUE": "QUEUE1",
           "getMsgsPerSec": "0",
           "queueTime": "6462",
           "MQBACF_RESPONSE_ID": "c3e2d840d4d8c4f1404040d9d4d8c4f1d0aa85996e6fc748",
           "maxQueueDepth": "0",
           "putMsgsPerSec": "0",
           "MQCACF_RESPONSE_Q_MGR_NAME": "DEMO",
           "interval": "83",
           "msgAge": "0"
       }
     }
  ]
}

STORAGE_CLASS

ObjectType	Category	Log File	URL	Operating System
STORAGE_CLASS	OBJECT_CONFIG	objectData.log	http://host:8085/objects/{QMGR}/STORAGE_CLASS	ZOS Only

Sample JSON Data

{
    "queryTime": 0,
    "objects": [
    {
        "messageBrokerName": "MQZOS",
        "objectName": "SYSLNGLV",
        "objectType": "STORAGE_CLASS",
        "className": "java.lang.Integer",
        "entryTime": "02/05/2016 4:07:42 PM",
        "fields": {
              "PAGESET_TOTAL_PAGES": "569483",
              "QSGDISP": "QMGR",
              "PASS_TICKET_APPL": "",
              "PAGESET_EXPAND_COUNT": "0",
              "XCF_MEMBER_NAME": "",
              "PAGESET_UNUSED_PAGES": "556352",
              "RESPONSE_ID": "c3e2d840d4d8c4f1404040d9d4d8c4f1d3956de58293922a",
              "PAGESET_ID": "1",
              "PAGESET_STATUS": "AVAILABLE",
              "COMMANDLEVEL": "800",
              "PLATFORM": "ZOS",
              "PAGESET_USED_PAGES": "13131",
              "PAGESET_PERSIST_PAGES": "11329",
              "ALTDATE": "2011-08-02",
              "PAGESET_PERCENT_USED": "2.31",
              "STGCLASS": "SYSLNGLV",
              "ALTTIME": "12.55.34",
              "XCF_GROUP_NAME": "",
              "PAGESET_NONPERSIST_PAGES": "1802",
              "PAGESET_EXPAND_TYPE": "1",
              "QMNAME": "MQD1",
              "DESCR": ""
        }
     }
   ]
}

PAGESET_USAGE

Sample JSON Data

ObjectType	Category	Log File	URL	Operating System
PAGESET_USAGE	STATUS	statusData.log	http://host:8085/objects/{QMGR}/PAGESET_USAGE	ZOS Only

Sample JSON Data

{
 "queryTime": 0,
 "objects": [
 {
      "messageBrokerName": "MQD1",
      "objectName": "1",
      "objectType": "PAGESET_USAGE",
      "className": "java.lang.Integer",
      "entryTime": "14/12/2017 5:05:43 PM",
      "fields": {
           "USAGE_TYPE": "1168",
           "UNUSED_PAGES": "556353",
           "RESPONSE_ID": "c3e2d840d4d8c4f1404040d9d4d8c4f1d3956f5562c0bc1c",
           "PAGESET_ID": "1",
           "EXPAND_COUNT": "0",
           "PERSIST_PAGES": "11329",
           "BUFFER_POOL_ID": "1",
           "COMMANDLEVEL": "800",
           "PLATFORM": "ZOS",
           "STATUS": "AVAILABLE",
           "TOTAL_PAGES": "569483",
           "EXPAND_TYPE": "1",
           "QMNAME": "MQD1",
           "NONPERSIST_PAGES": "1801"
      }
  }]
}

SYSTEM

ObjectType	Category	Log File	URL	Operating System
SYSTEM	OBJECT_CONFIG	objectData.log	http://host:8085/objects/{QMGR}/SYSTEM	ZOS Only

Sample JSON Data

{
 "queryTime": 0,
 "objects": [
 {
     "messageBrokerName": "MQD1",
     "objectName": "MQD1",
     "objectType": "SYSTEM",
     "className": "java.lang.Integer",
     "entryTime": "14/12/2017 4:48:52 PM",
     "fields": {
         "OPERATION_MODE": "0 701",
         "CCSID": "0",
         "DB2_BLOB_TASKS": "4",
         "SMF_ACCOUNTING": "YES",
         "RESLEVEL_AUDI": "YES",
         "ROUTING_CODE": "1",
         "TRACE_SIZE": "99",
         "QSG_NAME": "",
         "PLATFORM": "ZOS",
         "WLM_INT_UNITS": "0",
         "OTMA_MEMBER": "",
         "OTMA_DRU_EXIT": "DFSYDRU0",
         "MULC_CAPTURE": "STANDARD",
         "CMD_USER_ID": "MXMQSER1",
         "SMF_STATS": "YES",
         "OTMA_GROUP": "",
         "OTMA_TPIPE_PREFIX": "CSQ",
         "EXIT_TASKS": "8",
         "Q_INDEX_DEFER": "NO",
         "TRACE_CLASS": "",
         "MAX_ACE_POOL": "0",
         "RESPONSE_ID": "c3e2d840d4d8c4f1404040d9d4d8c4f1d3956b911c31ff24",
         "WLM_INTERVAL": "30",
         "DB2_NAME": "",
         "CLUSTER_CACHE": "DYNAMIC",
         "CONNECTION_SWAP": "YES",
         "DSG_NAME": "",
         "DB2_TASKS": "4",
         "EXCL_OPERATOR_MESSAGES": "",
         "SPLCAP": "NOT_SUPPORTED",
         "COMMANDLEVEL": "800",
         "SYSP_TYPE": "10",
         "CHKPOINT_COUNT": "500000",
         "OTMA_INTERVAL": "2147483647",
         "SMF_INTERVAL": "30",
         "EXIT_INTERVAL": "30",
         "QMNAME": "MQD1"
     }
   }]
}

LOG

ObjectType	Category	Log File	URL	Operating System
LOG	OBJECT_CONFIG	objectData.log	http://host:8085/objects/{QMGR}/LOG	ZOS Only

Sample JSON Data

{
      "queryTime": 0,
      "objects": [
      {
           "messageBrokerName": "MQD1",
           "objectName": "MQD1",
           "objectType": "LOG",
           "className": "java.lang.Integer",
           "entryTime": "14/12/2017 5:16:02 PM",
           "fields": {
                "DUAL_ACTIVE": "0",
                "DUAL_ARCHIVE": "0",
                "MQIACF_AUTH_REC_TYPE": "31",
                "RESPONSE_ID": "c3e2d840d4d8c4f1404040d9d4d8c4f1d39571a4443c7588",
                "OUT_BUFFER_SIZE": "4000",
                "OUT_BUFFER_COUNT": "20",
                "LOG_COMPRESSION": "0",
                "COMMANDLEVEL": "800",
                "PLATFORM": "ZOS",
                "IN_BUFFER_SIZE": "60",
                "MAX_READ_TAPES": "3",
                "DUAL_BSDS": "NO",
                "SYSP_TYPE": "10",
                "ARCHIVE": "1",
                "DEALLOC_INTERVAL": "0",
                "QMNAME": "MQD1",
                "MAX_ARCHIVE": "500"
           }
      }]
}

Field Values

https://www.ibm.com/support/knowledgecenter/en/SSFKSJ_9.0.0/com.ibm.mq.ref.adm.doc/q087690_.htm

Field Names	Description
messageBrokerName	Queue manager name
objectName	ChannelName
objectType	The Objects data type See, DataTypes and Categories
className	Internal use only
entryTime	The time the Lamaxu agent captured the metric data
DUAL_ACTIVE	Specifies whether dual logging is being used. YES\|NO
DUAL_ARCHIVE	Specifies whether dual archive logging is being used. YES\|NO
OUT_BUFFER_SIZE	Specifies the size of output buffer storage for active and archive log data sets.
OUT_BUFFER_COUNT	Specifies the number of output buffers to be filled before they are written to the active log data sets.
LOG_COMPRESSION	Specifies which log compression parameter is used.
COMMANDLEVEL	MQ manager version
PLATFORM	Operating environment of the queue manager
IN_BUFFER_SIZE	Specifies the size of input buffer storage for active and archive log data sets.
DUAL_BSDS	Specifies whether dual BSDS is being used. YES\|NO
SYSP_TYPE
ARCHIVE	Specifies whether archiving is on or off. YES\|NO
DEALLOC_INTERVAL	Specifies the length of time, in minutes, that an allocated archive read tape unit is allowed to remain unused before it is deallocated. The value can be in the range zero through 1440. If it is zero, the tape unit is deallocated immediately. If it is 1440, the tape unit is never deallocated.
QMNAME	Queue manager name
MAX_ARCHIVE	Specifies the maximum number of archive log volumes that can be recorded in the BSDS.

Q_STATISTICS

ObjectType	Category	Log File	URL	Operating System
STATISTICS	STATS_MESSAGE	statsData.log	http://host:8085/objects/{QMGR}/Q_STATISTICS	All NON-ZOS

Sample JSON Data

{
    "queryTime": 0,
    "objects": [
    {
        "messageBrokerName": "TEST",
        "objectName": "REQUEST.Q",
        "objectType": "Q_STATISTICS",
        "entryTime": "14/12/2017 5:25:33 PM",
        "fields": {
              "getMsgsPersist": "0",
              "reason": "NONE",
              "purgedMsgs": "0",
              "endDate": "2017-12-14",
              "type": "GROUP",
              "getMsgsPerSec": "2.48",
              "maxQueueDepth": "51",
              "browseMsgsPersist": "0",
              "avgQtimeNonPersist": "13630",
              "qmgrCommandLevel": "903",
              "putDateTime": "Thu, 14 Dec 2017 15:34:09 PM",
              "getMsgsPerSecPersist": "0.00",
              "TYPE": "QLOCAL",
              "getBytesPersist": "0",
              "getFailed": "0",
              "getBytesNonPersist": "172616",
              "put1Failed": "0",
              "browseMsgsNonPersist": "0",
              "putMsgsPerSecPersist": "0.00",
              "strucLength": "16",
              "version": "VERSION_3/CURRENT_VERSION",
              "putMsgsNonPersist": "149",
              "compCode": "OK",
              "expiredMsgs": "0",
              "putBytesNonPersist": "172616",
              "browseBytesPersist": "0",
              "interval": "60",
              "QMNAME": "TEST",
              "startDate": "2017-12-14",
              "getMsgsNonPersist": "149",
              "objectCount": "15",
              "getMsgsPerSecNonPersist": "2.48",
              "CRTIME": "10.37.10",
              "string": "15.34.09",
              "browsesFailed": "0",
              "putBytesPersist": "0",
              "putMsgsPerSec": "2.48",
              "msgSeqNumber": "1",
              "parameter": "Q_STATISTICS_DATA",
              "startTime": "15.33.09",
              "codedCharSetId": "0",
              "stringLength": "8",
              "value": "15",
              "CRDATE": "2017-12-14",
              "avgQtimePersist": "0",
              "parameterCount": "22",
              "putMsgsPerSecNonPersist": "2.48",
              "control": "LAST",
              "QUEUE": "REQUEST.Q",
              "browseBytesNonPersist": "0",
              "put1MsgsNonPersist": "0",
              "msgsNotQueued": "11",
              "Command": "STATISTICS_Q",
              "DEFTYPE": "TEMPDYN",
              "putsFailed": "0",
              "put1MsgsPersist": "0",
              "endTime": "15.34.09",
              "minimumQueueDepth": "0",
              "putMsgsPersist": "0"
       }
    }]
}

QUEUE_STATUS

Sample JSON Data
Field Values

ObjectType	Category	Log File	URL	Operating System
QUEUE_STATUS	STATUS	statustData.log	http://host:8085/objects/{QMGR}/QUEUE_STATUS	All

Refer also, DataTypes and Categories

Sample JSON Data

{
      "queryTime": 0,
      "objects": [
      {
           "messageBrokerName": "TEST",
           "objectName": "TEST.RESPONSE.Q",
           "objectType": "QUEUE_STATUS",
           "className": "java.lang.Integer",
           "entryTime": "15/12/2017 3:47:23 PM",
           "fields": {
                "MONQ": "MEDIUM",
                "QTIME": "-1 -1",
                "LPUTDATE": "",
                "MSGAGE": "0",
                "IPPROCS": "0",
                "LGETTIME": "",
                "lastGetDateTime": "-1",
                "MEDIA_LOG_EXTENT_NAME": "",
                "lastPutEpoch": "-1",
                "lastPutDate": "-1",
                "lastGetEpoch": "-1",
                "TYPE": "QSTATUS",
                "lastGetTime": "-1",
                "lastPutDateTime": "-1",
                "OPPROCS": "0",
                "lastGetDate": "-1",
                "queueTimeAverage": "-1",
                "lastGetIntervalSecs": "-1",
                "LGETDATE": "",
                "QUEUE": "TEST.RESPONSE.Q",
                "LPUTTIME": "",
                "CURDEPTH": "0",
                "queueTime": "-1",
                "lastPutIntervalSecs": "-1",
                "UNCOM": "NO",
                "lastPutTime": "-1"
           }
      }]
}

Field Values

Field Names	Description
messageBrokerName	Queue manager name
objectName	ChannelName
objectType	The Objects data type See, DataTypes and Categories
className	Internal use only
entryTime	The time the Lamaxu agent captured the metric data
MONQ
QTIME
LPUTDATE
MSGAGE	The age of the oldest message in seconds
IPPROCS	The number of PUT connection handles to the queue
LGETTIME
lastGetDateTime
MEDIA_LOG_EXTENT_NAME
lastPutEpoch
lastPutDate
lastGetEpoch
TYPE
lastGetTime
lastPutDateTime
OPPROCS	The number of GET connection handles to the queue
lastGetDate
queueTimeAverage
lastGetIntervalSecs
LGETDATE
QUEUE	The name of the queue
LPUTTIME
CURDEPTH
queueTime
lastPutIntervalSecs
UNCOM
lastPutTime

SUBSCRIPTION_STATUS

Sample JSON Data
Field Values

ObjectType	Category	Log File	URL	Operating System
SUBSCRIPTION_STATUS	STATUS	statusData.log	http://host:8085/objects/{QMGR}/SUBSCRIPTION_STATUS	All

Sample JSON Data

{
      "queryTime": 0,
      "objects": [
      {
           "messageBrokerName": "TEST",
           "objectName": "SUBTEST",
           "objectType": "SUBSCRIPTION_STATUS",
           "className": "java.lang.Integer",
           "entryTime": "18/12/2017 10:38:25 AM",
           "fields": {
                "LMSGDATE": "2017-12-07",
                "SUB": "SUBTEST",
                "SUBID": "414d5120544553542020202020202020eec4b959d3c61322",
                "MSGAGE": "0",
                "lastMsgDate": "20171207",
                "LMSGTIME": "13:54:59",
                "NUMMSGS": "1",
                "lastMsgIntervalSecs": "-1",
                "MCASTREL": "-1 -1",
                "DURABLE": "YES",
                "CURDEPTH": "0",
                "TOPICSTR": "/SUBTEST",
                "RESMDATE": "2017-12-07",
                "lastMsgEpoch": "-1",
                "lastMsgDateTime": "2017120713:54:59",
                "lastMsgTime": "13:54:59",
                "QMNAME": "TEST"
           }
      }]
}

Field Values

Field Names	Description
messageBrokerName	Queue manager name
objectName	Subscriber Name
objectType	The Objects data type See, DataTypes and Categories
className	Internal use only
entryTime	The time the Lamaxu agent captured the metric data
LMSGDATE	The date of the last message
SUB	The subscriber Name
SUBID	Internal ID value used by MQ
MSGAGE	The oldest message age in seconds
lastMsgDate	The date of the last message with no delimiters
LMSGTIME	The time of the last message
NUMMSGS
lastMsgIntervalSecs
MCASTREL
DURABLE	Where the subscriber is durable or not
CURDEPTH	Current message depth of the subscriber queue
TOPICSTR	The TOPIC string the Subscriber relates to, is subscribing to
RESMDATE
lastMsgEpoch	UNIX date/time of the last message
lastMsgDateTime	The last message date/time with do delimiters
lastMsgTime	The time of the last message
QMNAME	The Queue manager name where the subscription is hosted

Using CURL

You can decode the Unicode chars in shell by surrounding your CURL command with, echo -en "$(curl URL)"

Example;

Curl command not surrounded with echo -en “$()”

curl --silent --header "Accept: application/json" -u admin:password http://localhost:8085/objects/TEST/SUBSCRIPTION/.*/SELECTOR

$ curl --silent --header "Accept: application/json" -u admin:password http://localhost:8085/objects/TEST/SUBSCRIPTION/.*/SELECTOR
{
  "queryTime": 0,
  "objects": [
    {
      "messageBrokerName": "TEST",
      "objectName": "TestSub",
      "objectType": "SUBSCRIPTION",
      "entryTime": "28/05/2018 11:07:57 AM",
      "fields": {
        "SELECTOR": "EAI_method \u003d \u0027notifyStatusChange\u0027 AND EAI_mandant \u003d \u0027000\u0027 AND EAI_routingCode LIKE \u0027%O%\u0027"
      }
    }
  ]
}

Same curl command surrounded with echo -en “$()”

$ echo -en "$(curl --silent --header "Accept: application/json" -u admin:password http://localhost:8085/objects/TEST/SUBSCRIPTION/.*/SELECTOR)"

$ echo -en "$(curl --silent --header "Accept: application/json" -u admin:password http://localhost:8085/objects/TEST/SUBSCRIPTION/.*/SELECTOR)"
{
  "queryTime": 0,
  "objects": [
    {
      "messageBrokerName": "TEST",
      "objectName": "TestSub",
      "objectType": "SUBSCRIPTION",
      "entryTime": "28/05/2018 11:06:27 AM",
      "fields": {
        "SELECTOR": "EAI_method = 'notifyStatusChange' AND EAI_mandant = '000' AND EAI_routingCode LIKE '%O%'"
      }
    }
  ]
}

Displaying Message Payloads

Lamaxu has actions to allow you to read message payloads if authorised to do so.

MQ browse/get authorities need to be granted to the user assigned to the Lamaxu channel to use this feature

Browse / Get all Messages on a Queue
Selecting Messages using MessageId and CorrelId

Browse / Get all Messages on a Queue

The REST URL for this would be,

http://host:8085/actions/DEMO/QBROWSE/LMX.REPLY.Q (Browse Only)

or

http://host:8085/actions/DEMO/QGET/LMX.REPLY.Q (Destructive GET)

Example Output,

{
      "messages": [
            {
                  "messageBrokerName": "DEMO",
                  "objectName": "LMX.REPLY.Q",
                  "objectType": "MSG_DATA",
                  "entryTime": "14/05/2019 8:23:38 PM",
                  "fields": {
                        "msgString": "Test 1",
                        "correlId": "000000000000000000000000000000000000000000000000",
                        "msgLength": "6",
                        "messageId": "414D512044454D4F20202020202020207A1BF45AD2D15C20",
                        "expiry": "-1",
                        "putDateTime": "Mon, 14 May 2019 20:14:43 PM"
                  }
            },
            {
                  "messageBrokerName": "DEMO",
                  "objectName": "LMX.REPLY.Q",
                  "objectType": "MSG_DATA",
                  "entryTime": "14/05/2019 8:23:38 PM",
                  "fields": {
                        "msgString": "Test 2",
                        "correlId": "000000000000000000000000000000000000000000000000",
                        "msgLength": "6",
                        "messageId": "414D512044454D4F20202020202020207A1BF45AD5D15C20",
                        "expiry": "-1",
                        "putDateTime": "Mon, 14 May 2019 20:14:46 PM"
                  }
            },
            {
                  "messageBrokerName": "DEMO",
                  "objectName": "LMX.REPLY.Q",
                  "objectType": "MSG_DATA",
                  "entryTime": "14/05/2019 8:23:38 PM",
                  "fields": {
                        "msgString": "Test 3",
                        "correlId": "000000000000000000000000000000000000000000000000",
                        "msgLength": "6",
                        "messageId": "414D512044454D4F20202020202020207A1BF45AD8D15C20",
                        "expiry": "-1",
                        "putDateTime": "Mon, 14 May 2019 20:14:49 PM"
                  }
            }
      ]
}

Selecting Messages using MessageId and CorrelId

You can also filter on messageId and correlId , example, http://localhost:8085/actions/.*/QBROWSE/LMX.REPLY.Q/messageId/414D512044454D4F20202020202020207A1BF45AD21B6F20

Example output,

{
       "queue": {
             "curDepth": 3,
             "maxMsgLength": 4194304,
             "inputCount": 0,
             "outputCount": 0,
             "maxDepth": 99999999,
             "queueName": "LMX.REPLY.Q",
             "qmgrName": "DEMO",
             "messages": [
                    {
                          "correlId": "000000000000000000000000000000000000000000000000",
                          "messageId": "414D512044454D4F20202020202020207A1BF45AD21B6F20",
                          "msgLength": 6,
                          "expiry": -1,
                          "putDateTime": "Fri, 18 May 2018 11:32:40 AM",
                          "msgString": "Test 1",
                          "msgPosition": 1
                    },
                    {
                          "correlId": "000000000000000000000000000000000000000000000000",
                          "messageId": "414D512044454D4F20202020202020207A1BF45AD51B6F20",
                          "msgLength": 6,
                          "expiry": -1,
                          "putDateTime": "Fri, 18 May 2018 11:32:42 AM",
                          "msgString": "Test 2",
                          "msgPosition": 2
                    },
                    {
                          "correlId": "000000000000000000000000000000000000000000000000",
                          "messageId": "414D512044454D4F20202020202020207A1BF45AD81B6F20",
                          "msgLength": 6,
                          "expiry": -1,
                          "putDateTime": "Fri, 18 May 2018 11:32:44 AM",
                          "msgString": "Test 3",
                          "msgPosition": 3
                    }
             ],
             "description": "                                                                ",
             "entryTime": "21/05/2018 10:07:50 PM"
       }
}

Page tree

HTTP Gateway

Configuring the HTTP Gateway

Authenticating Access to the HTTP Gateway

Passwords

Obfuscating the Password

On Linux

On Windows

REST Web Service API

Table of Web Service REST URIs

Table of Web Service REST URIs

Structuring a Request

Structure of the URI

Example

Request headers

Filter Examples

Postman Example showing Accept header

Mainframe ZOS (Only)

RESETQSTATS

Sample JSON Data

STORAGE_CLASS

Sample JSON Data

PAGESET_USAGE

Sample JSON Data

SYSTEM

Sample JSON Data

LOG

Sample JSON Data

Field Values

Q_STATISTICS

Sample JSON Data

QUEUE_STATUS

Sample JSON Data

Field Values

SUBSCRIPTION_STATUS

Sample JSON Data

Field Values

Using CURL

Displaying Message Payloads

Browse / Get all Messages on a Queue

Selecting Messages using MessageId and CorrelId
